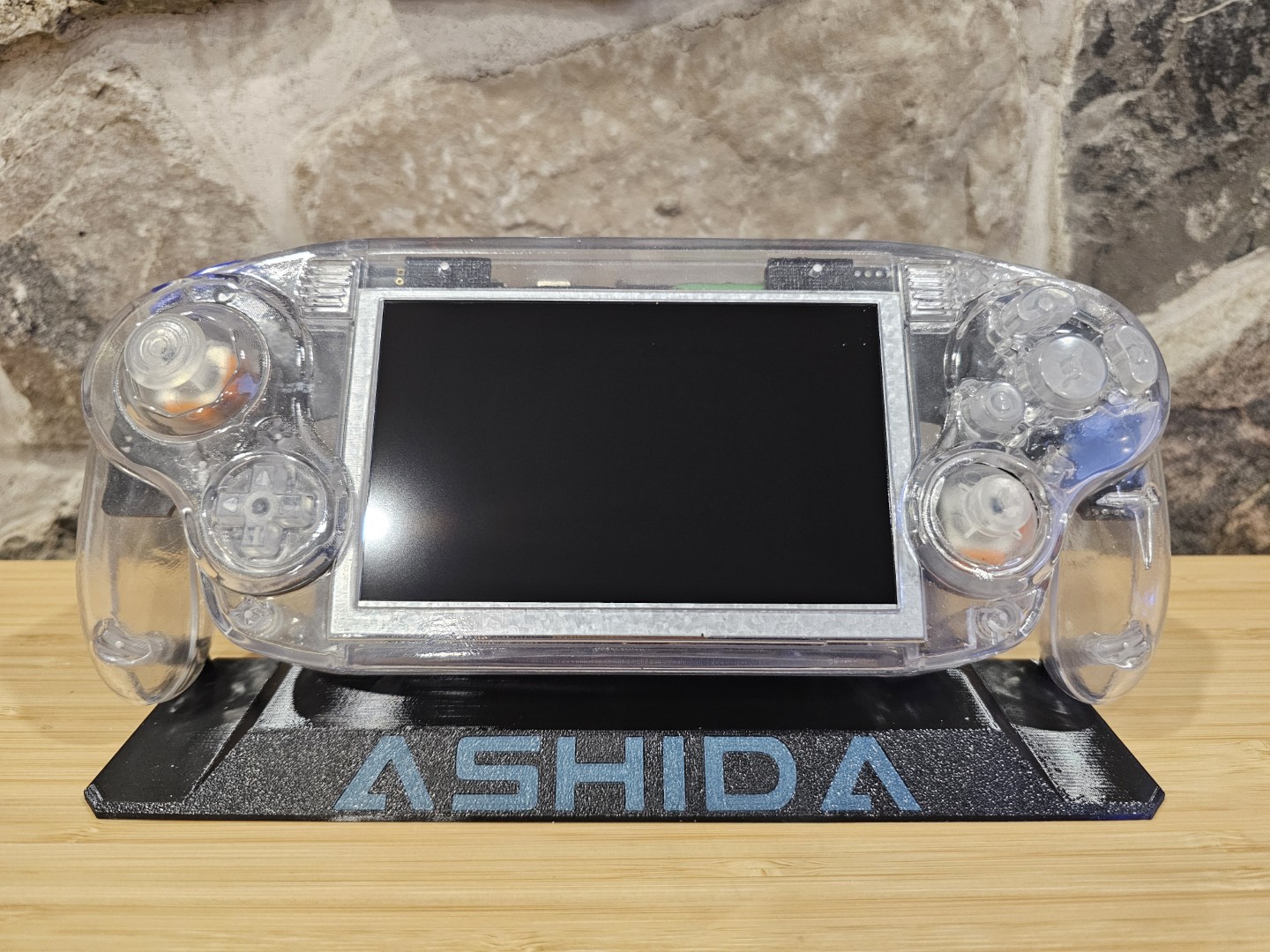

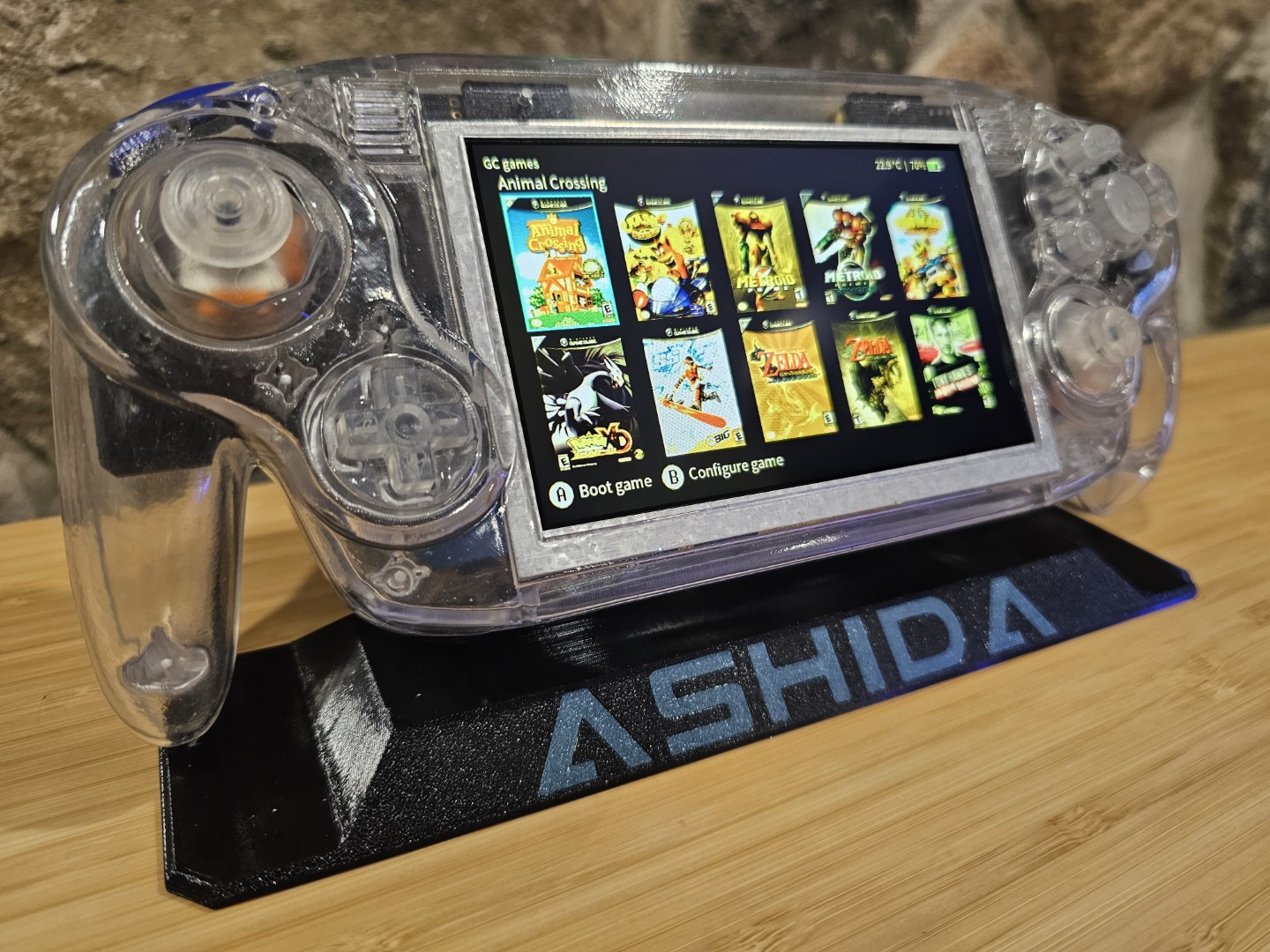

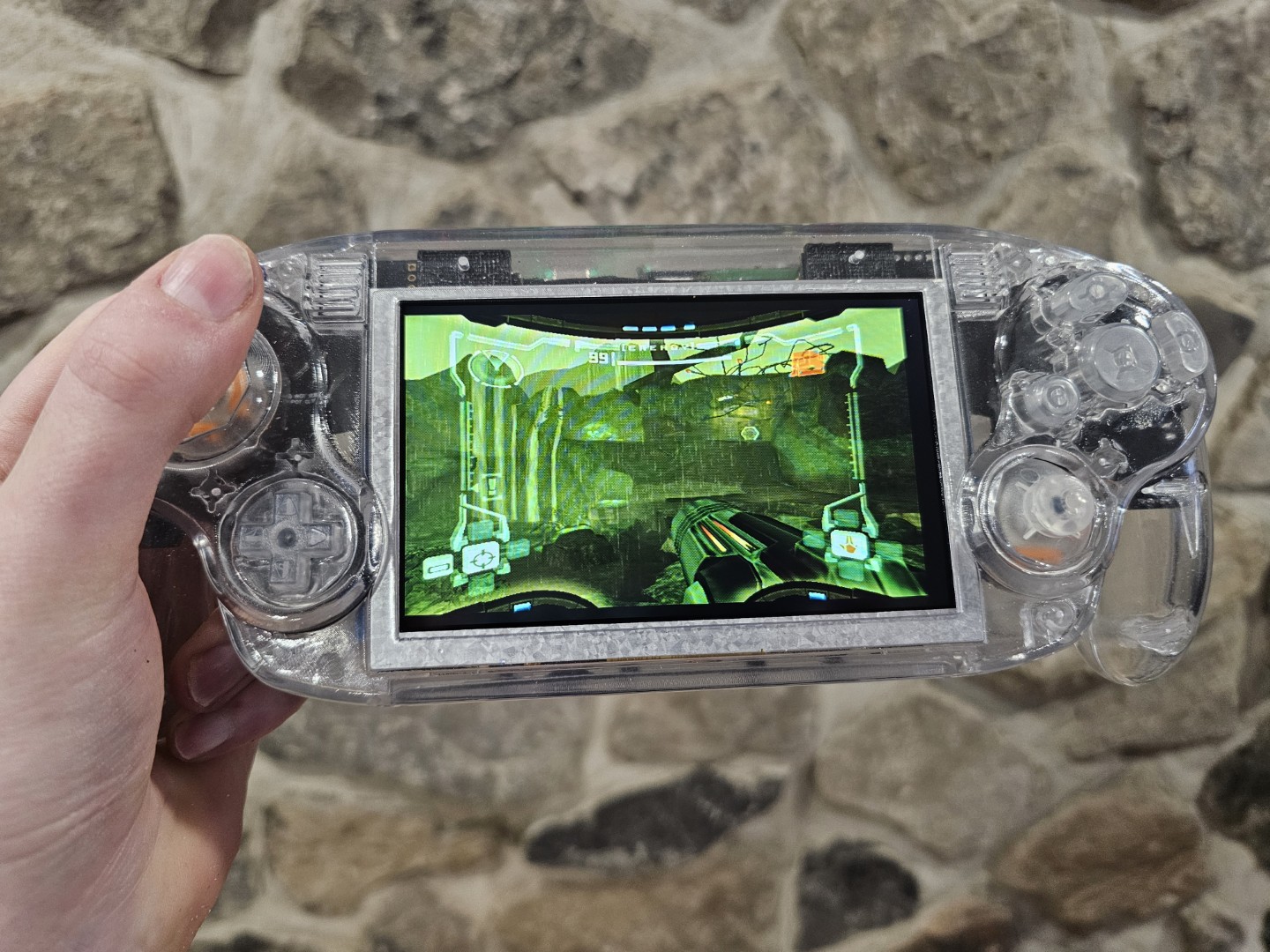

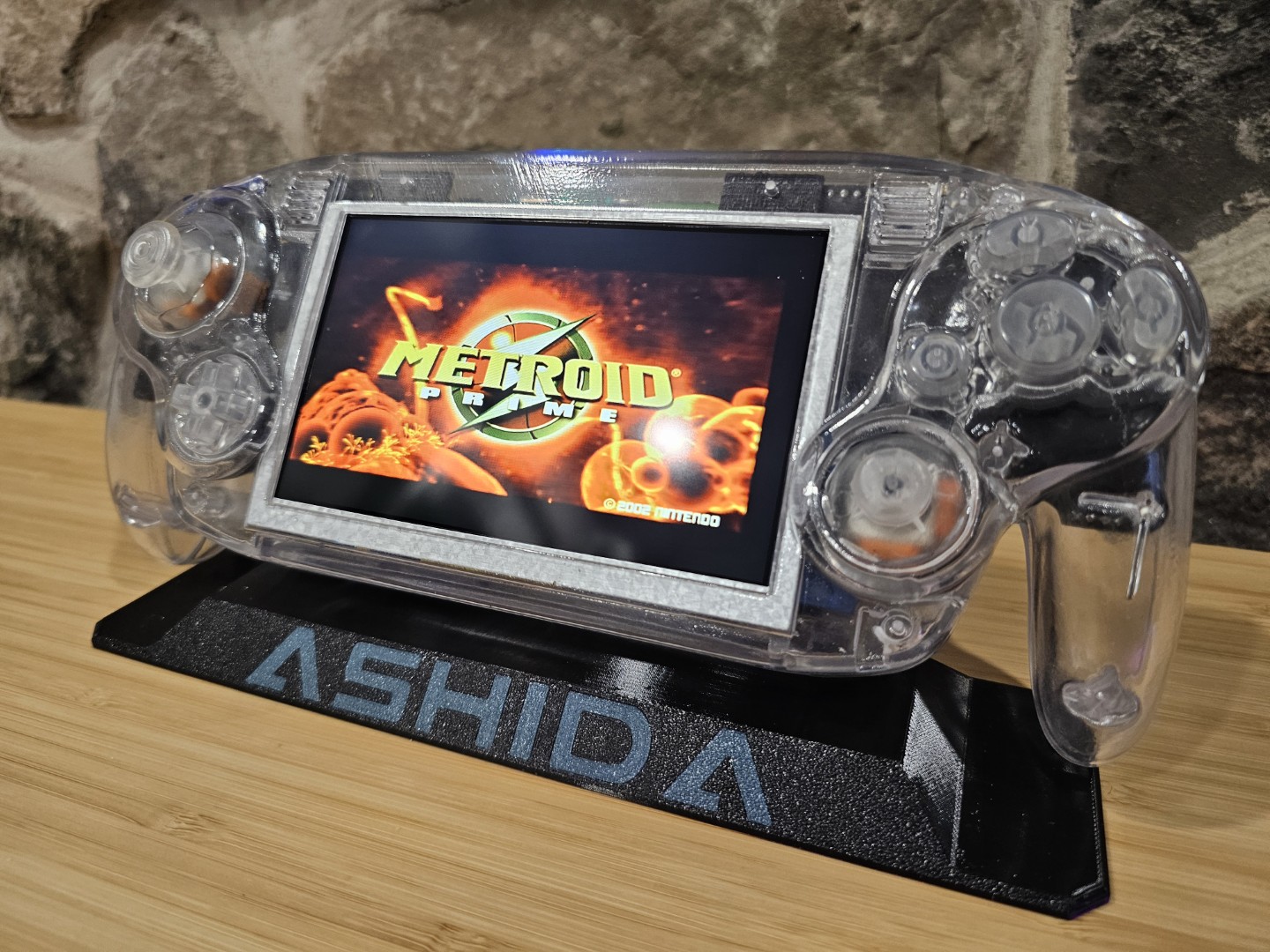

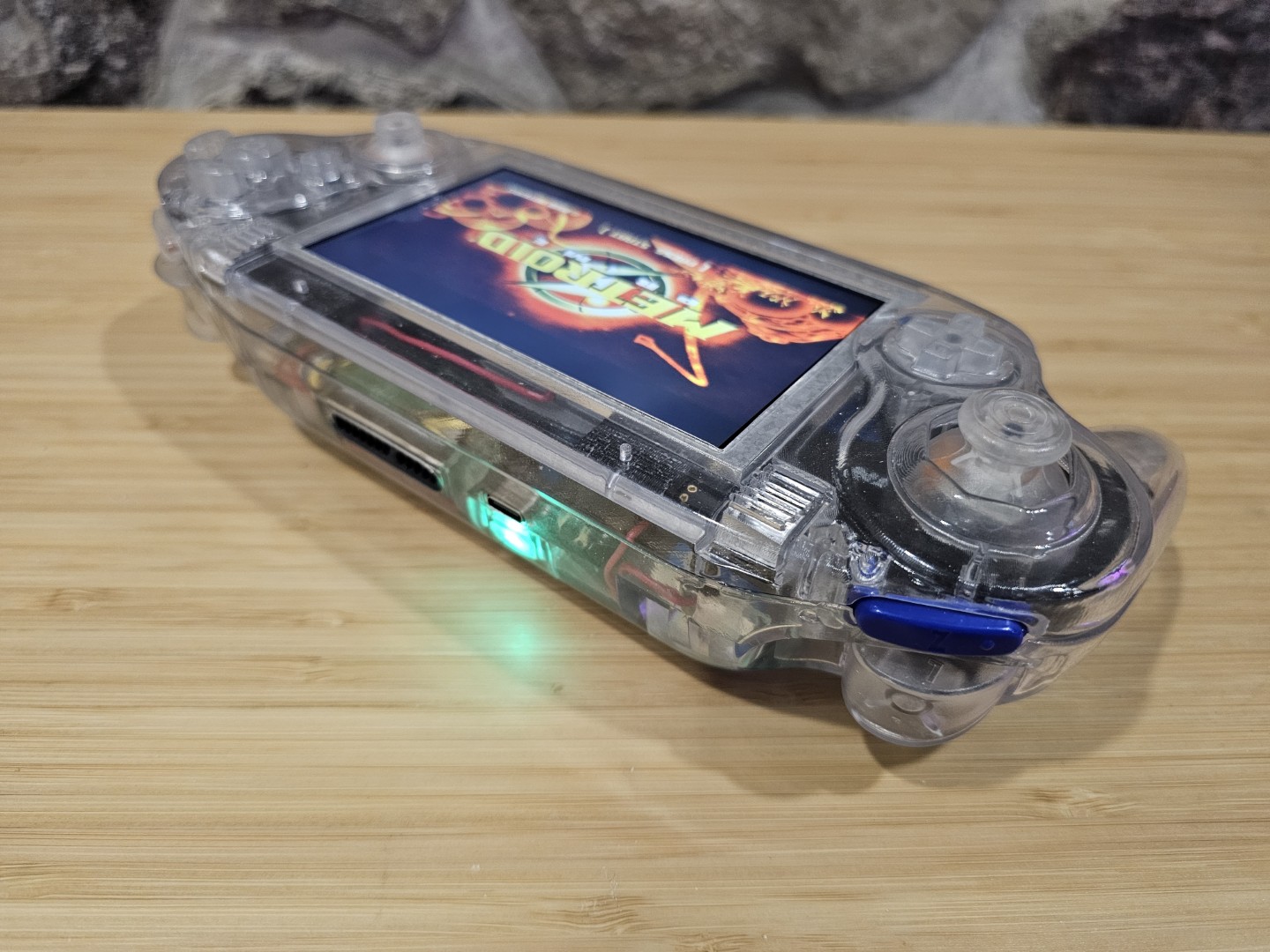

OfflineRocket's Ashida Wii Portable! This is a modified Wii to run with lower power, so that it can run off of battery power! Allows you to play Wii games on the go!
This was a project designed by Wesk on bitbuit.net! It is a very well documented project, and is a great introduction to make Wii Portables.
Features:
- Official Nintendo Wii Hardware - Trimmed to fit in a case
- USB PD charging using 4LayerTech's PMS PD board
- Efficient Voltage regulation using the RVL-PMS
- 5" 480p display, using VGA for best video quality from the Wii

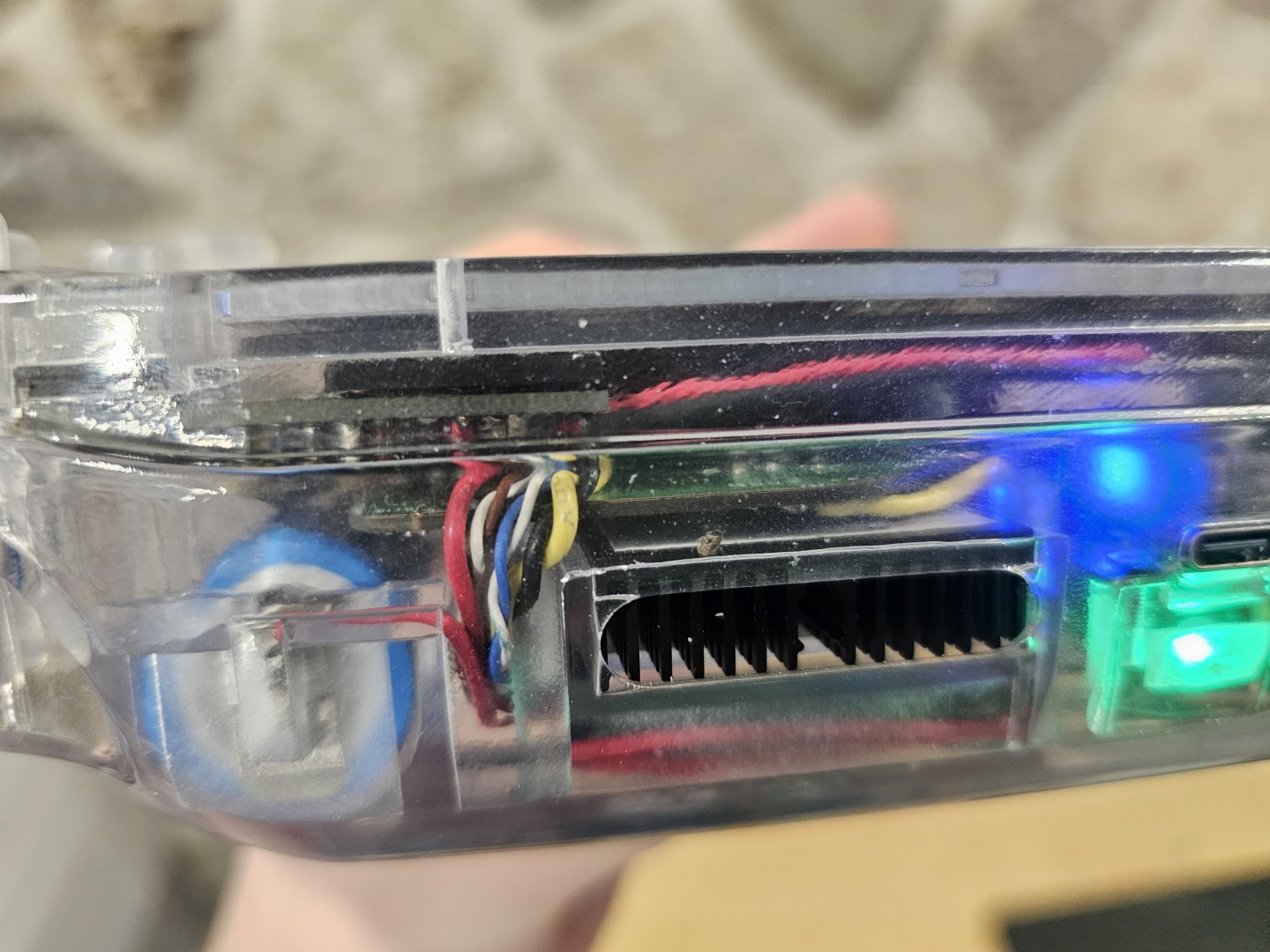

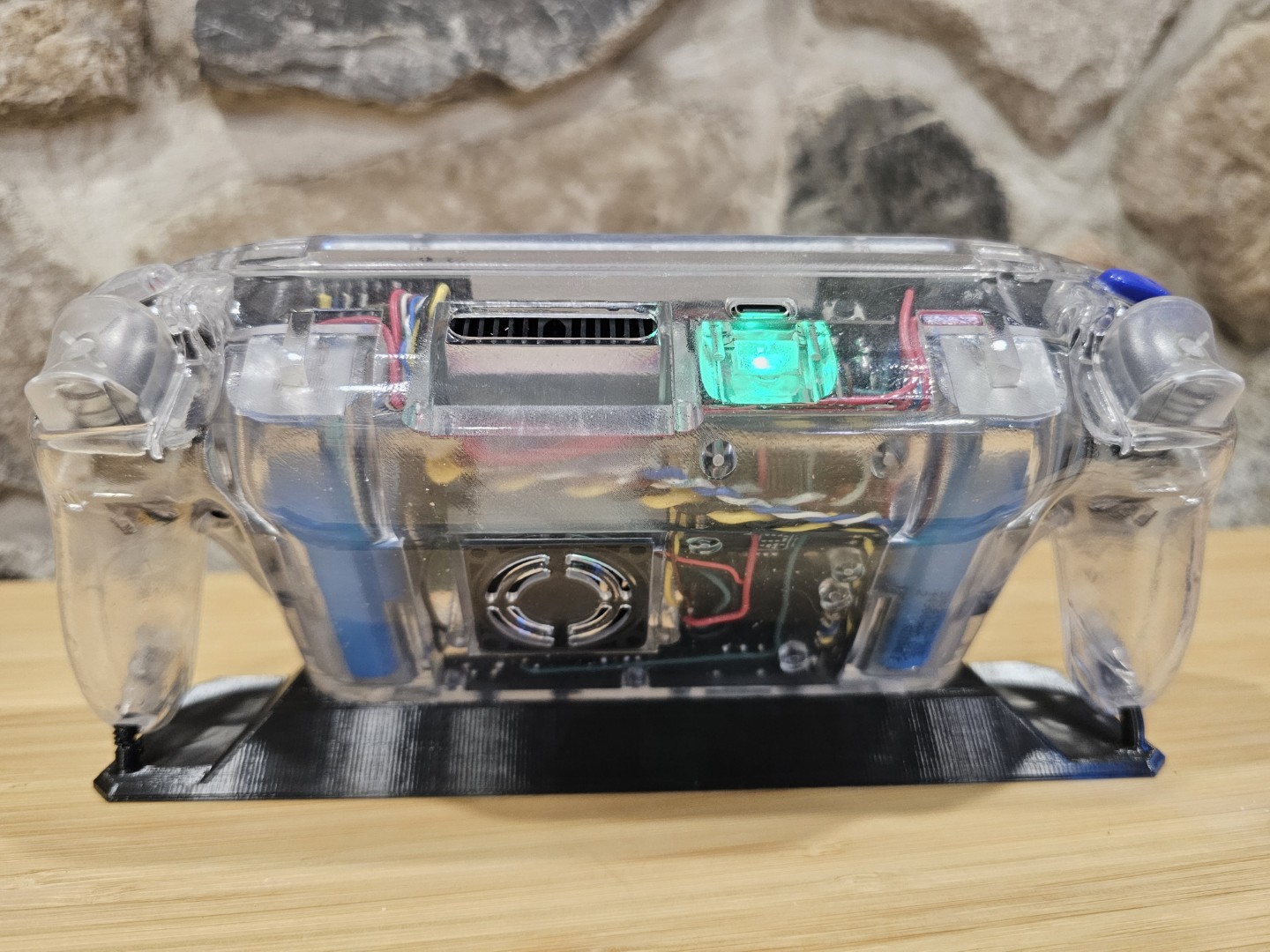

- Transparent case to show off electronics
Skills Learned:
- Micro Soldering
- PCB Trimming
Hardware:
- Official Nintendo Wii
- PMS PD2 (4 Layer Tech) - for USB PD Negotiation
- RVL-PMS (4 Layer Tech) - for Wii Voltage regulation
- U-Amp 2 (4 Layer Tech) - for Audio amplification
- GC+ 2 (4 Layer Tech) - for the Gamecube controller emulation
- 2x 9000mAH 21000 Lithium batteries
- Clear Resin shell 3D printed by JLCPCB
Instructions:
Documentation can be found on the official page
Can I buy this?
No, this is something that I've wanted to make for a while, so I would like to keep it. There's many other people who will make these Ashida's as a commision (typically known as Portabilizers), look towards BitBuilt if you'd really like to buy one.
Images:
